Product information

Sample, OEM/ODM service support

USB Bicycle tail lamp specification parameters:

Product model: LYX-A02 Bike Rear lamp

Bulb type: 2835 red LED beads

Luminous color: Red

Lamp bead wavelength: 620nm

Shell color: black background and red cover

Product material: PC plastic

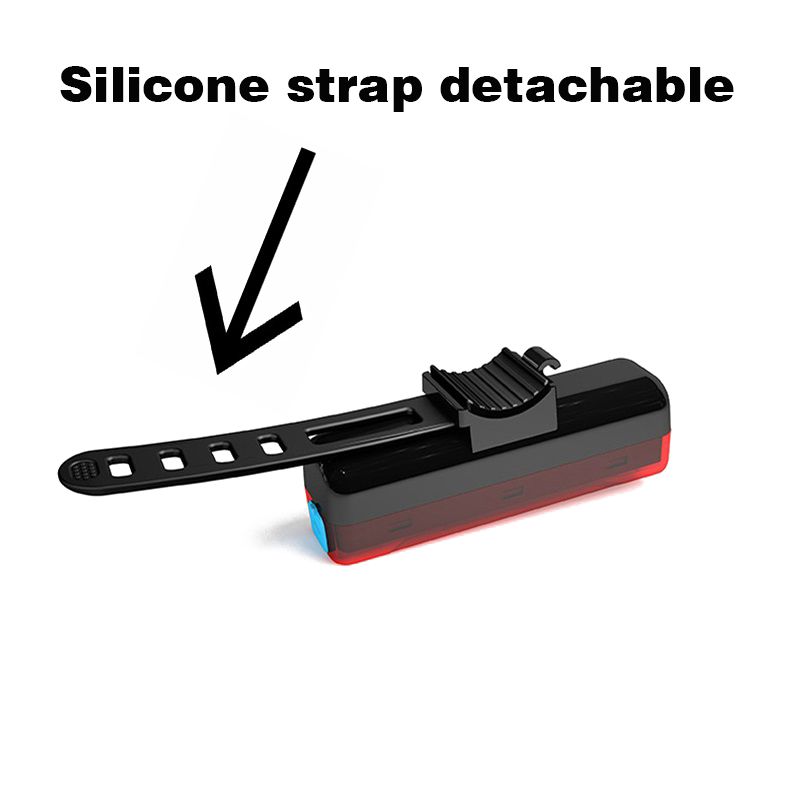

Fixation method: silicone bandage

Exposure range: 240 degrees

Beam angle: 120 degrees

Power supply: built-in 1*18650

Battery capacity: 1200mAh / 2600mAH optional

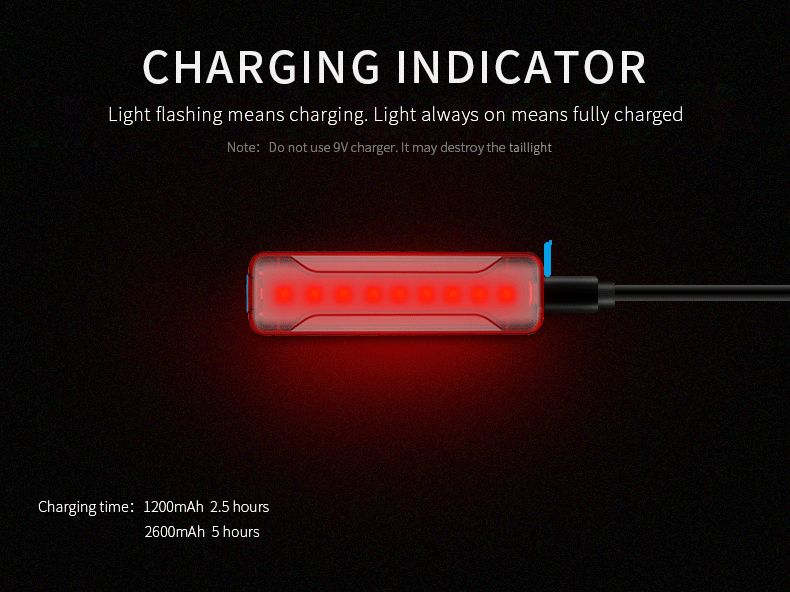

Charging input: 5V/1A (do not use 9V charger, it may damage the equipment)

Working voltage: 3.7V

Charging time: 2.5h (1200mAh) / 5h (2600mAH)

Discharge time: high light 25 hours (1200mAh) / 50 hours (2600mAH)

Discharge time: super bright 3 hours (1200mAh) / 6 hours (2600mAH)

Switch type: push switch

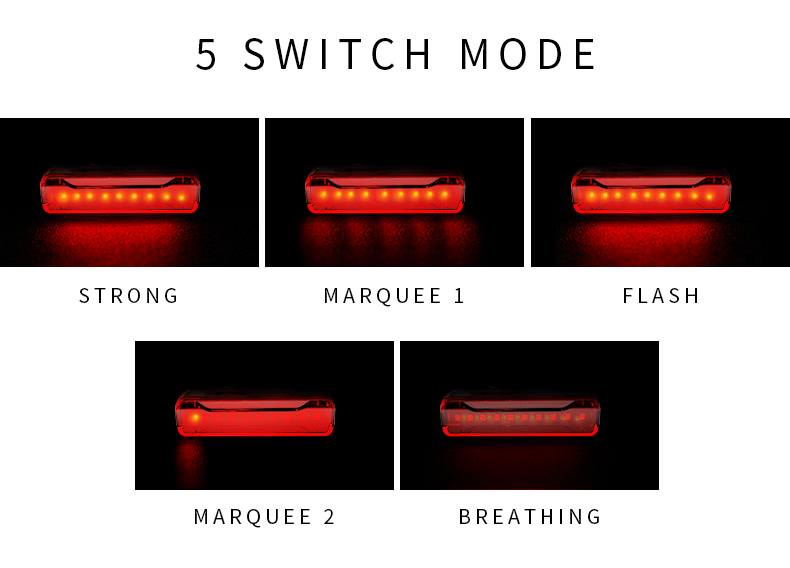

Dimming mode: highlight, running lamp 1, flash, running lamp 2, breath, (long press 2 seconds to turn off)

Product specification: length 88mm, width 27mm, thickness 25mm, strap length 113mm

Charging and discharging protection: built in IC for overcharging and discharging to prolong battery life

Packing method: OPP bag / color box

Waterproof grade: ipx5 (rain proof, splash proof)

Net weight: 68g (1200mAh) / 77g (2600mAH)

Gross weight of plastic bag: 82G (1200mAh) / 91g (2600mAH)

Gross weight of color box: 95g (1200mAh) / 104g (2600mAH)

Dimension of outer box: length 365 * width 278 * height 275mm (100 sets of box gauge)

Weight of outer box: 10.6kg (100 sets)

Product accessories: tail lamp, 0.5m USB cable, OPP bag / color box
